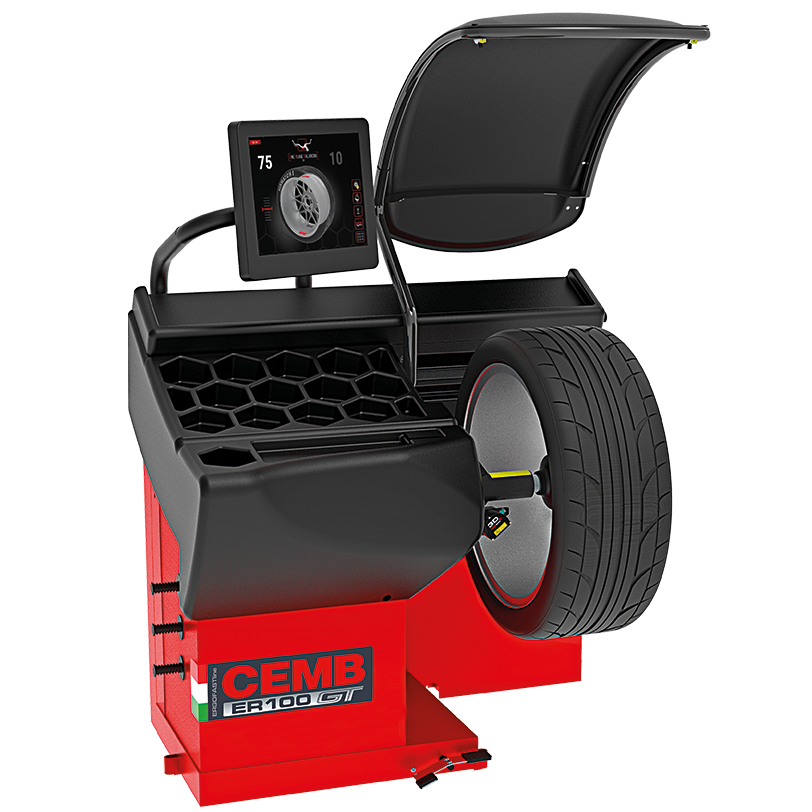

ER100GT

3D Laser Scan

How Does It Work?

The first step in a proper wheel balancing procedure is acquiring the wheel dimensions: distance (reference point on the balancer to the weight application point on the rim), diameter, and rim width.
Typically, the first two measurements are taken using a gauge, while the third can be entered manually or measured using an external gauge, Virtual Sonar, or Sonar. On balancers equipped with 3D Laser Scan, these dimensions are automatically detected within seconds when the wheel guard is closed.

During the correction phase, 3D Laser Scan identifies the exact position for applying adhesive weights inside the rim. Any errors in weight placement are eliminated thanks to the electromagnetic brake, which locks the wheel precisely at the unbalance position.

Advantages

• Fast and accurate reading of any rim profile, even the most complex
• Extra-bright laser pointer ensures maximum precision during weight placement by clearly indicating the correction point
• Highly durable materials for long-lasting use, with no exposed moving parts—reducing wear and potential damage
• Compact design to maximize working space
• Easy maintenance

OPB: One plane balancing

How Does It Work?

If the right conditions are met, at the end of the measurement spin, One Plane Balancing automatically proposes a single ideal correction plane, indicating the exact point inside the rim where the wheel can be balanced by minimizing both static and dynamic imbalance using a single counterweight.

Advantages

• 40% balancing time saved per wheel
• 70% of wheels can be balanced with a single counterweight
• 48 hours of work saved every year

Side Laser

How does it work:

The Side Laser is a laser indicator integrated into the wheel guard, designed to ensure precise positioning of clip-on weights during balancing. By projecting a laser line onto the upper part of the wheel, the system visually guides the operator to place the weights exactly in the correct spot. This helps reduce placement errors and achieves more accurate and faster balancing.

Advantages

• Ensures precise positioning of clip-on weights
• Reduces errors during the balancing process
• Improves operational efficiency and work speed
• Facilitates the operator’s work with clear and immediate visual guidance

AutoAdaptive Mode

How Does It Work?

Advantages

• Completely eliminates vibrations felt on the steering wheel
• Ensures maximum driving comfort
• Optimizes balancing times
• Works in synergy with the OPB program for even greater efficiency

Automatic Positioning

How Does It Work?

At the end of the measurement spin, the wheel automatically stops exactly at the correction point. After completing the first plane correction, pressing the repositioning button automatically moves the wheel to the second correction point

Advantages

• Extremely fast positioning thanks to the electromagnetic brake
• Instant wheel lock at the exact correction point
• No physical effort required from the operator
• Greater efficiency and precision during the balancing process

Hubmatch

How Does It Work?

The balancing process may sometimes not solve all steering wheel vibration issues.
Tyres must be balanced and also “round when rolling,” meaning they should not have high eccentricity, to ensure the vehicle moves without annoying vibrations.
HubMatch, in a single spin, detects the unbalance and the point of maximum eccentricity of the wheel, which is displayed on screen and guides the operator during wheel mounting so that the natural clearances between the rim and hub eliminate the eccentricity.

Advantages

• Solves all residual wheel vibrations
• Guides the operator during vehicle mounting
• Significantly reduces cycle time
• Improves the vehicle’s driving quality
