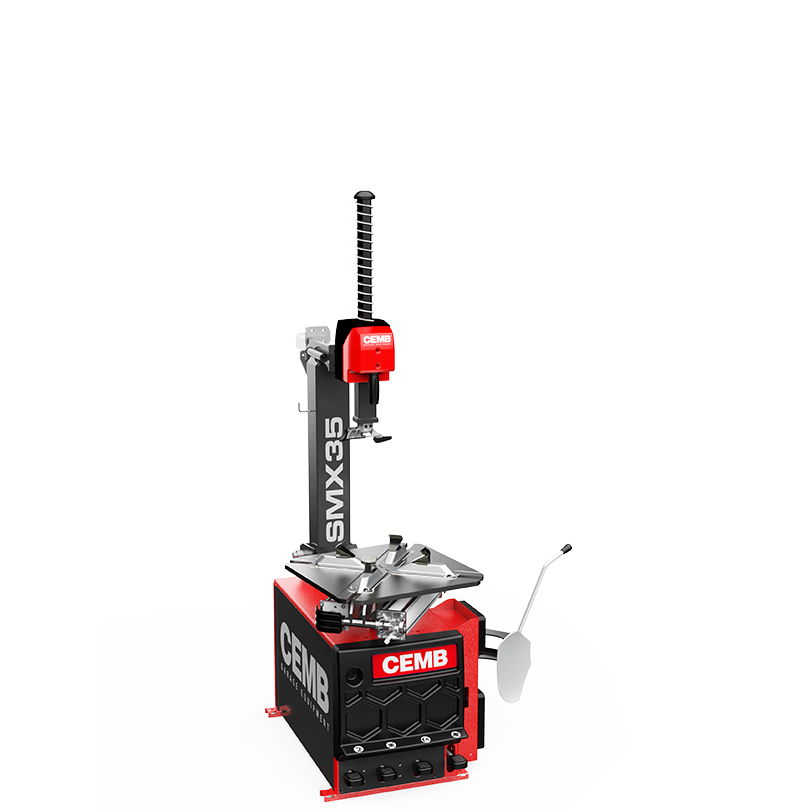

SMX35

Automatic Tyre Changer
for Car and Van Wheels

Strong and efficient design for safe and accurate operation

The SMX35 is a semi-automatic tyre changer for car and van wheels up to 25”. Compact, robust, and easy to operate, it provides dependable performance for everyday tyre fitting and removal.

Tilting post design for fast and simple setup
Opposed-jaws clamping turntable with 80 mm cylinders for stable and even grip
Bead breaker with ergonomic arm to operate on 12″ width wheels
Body with removable pedal unit for easier maintenance and aligned pedals for ergonomic use
Clamping capacity from 10” to 25” (max wheel diameter 1000 mm / 39”, width 310 mm/ 12”)
Supplied with tyre pressure gun with Wika manometer
Available versions on request: TI version (integrated inflation device), Version complete with pedal-operated inflation device

Reliable and functional, the SMX35 is the ideal semi-automatic solution for workshops seeking simple, efficient, and long-lasting tyre service equipment.

Automatic Tyre Changer

25" Squared Turntable

Features

TI (Tire Inflation) – Available only on TI Version

The TI system integrates a tire inflation device directly into the jaws, simplifying the bead seating process and ensuring uniform inflation. Available only on the TI version.

Technical data

Clamping capacity	10” ÷ 25” (min ÷ max)
Internal clamping	12” - 25”
External clamping	10” - 22”
Max wheel diameter	1000 mm (39”)
Max wheel width	310 mm (12”)
Bead breaker force	15000 N
3-Phase motor	0,8-1,1 kW 400V - 50/60Hz (2 speed)
Turntable speed	7-14 rpm (3ph - 2 speed)
Operating pressure	8 - 12 bar (116 - 174 psi)
Noise level	< 70 ± 3 dB (A)
Net weigth	210 kg

Head protections – lever

Set composed by 3x front mounting head protections, 3x botton mounting head protections and lever

Optional equipment

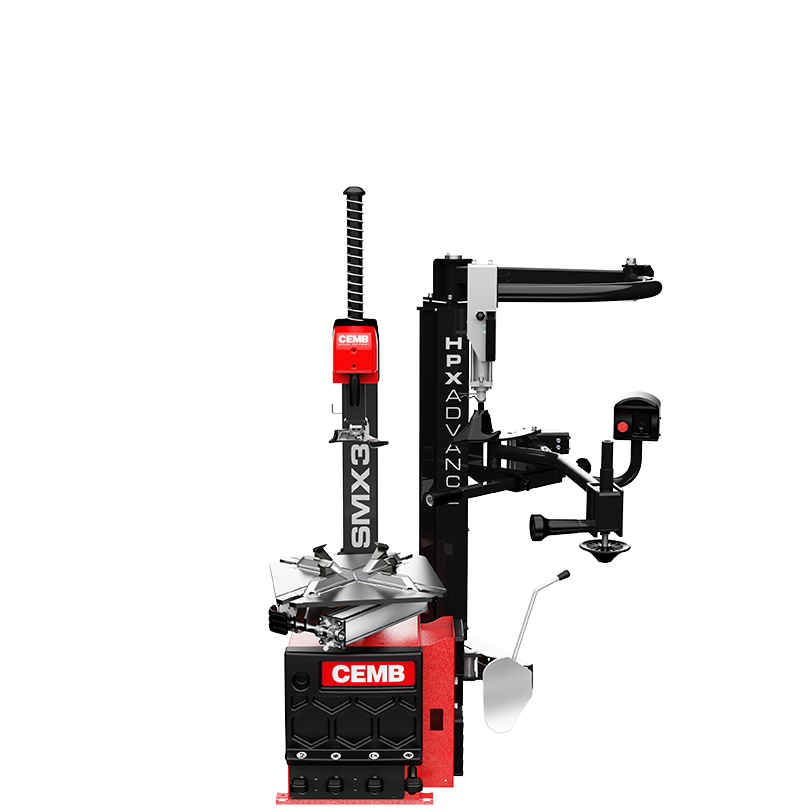

46MB00849 – HPX-ADV

Professional lateral presser ideal to operate on particularly hard and large-sized Run-Flat and UHP Tyres. Robust structure
with 2 air cylinders of 80 mm to avoid bendings. Equipped with rim pressing tool, standard bead pressing roller arm, bead pressing roller at 90° with pneumatic locking and possibility of operating under the tyre.
For SMX35 to be ordered with adaptor kit 46MB204588.

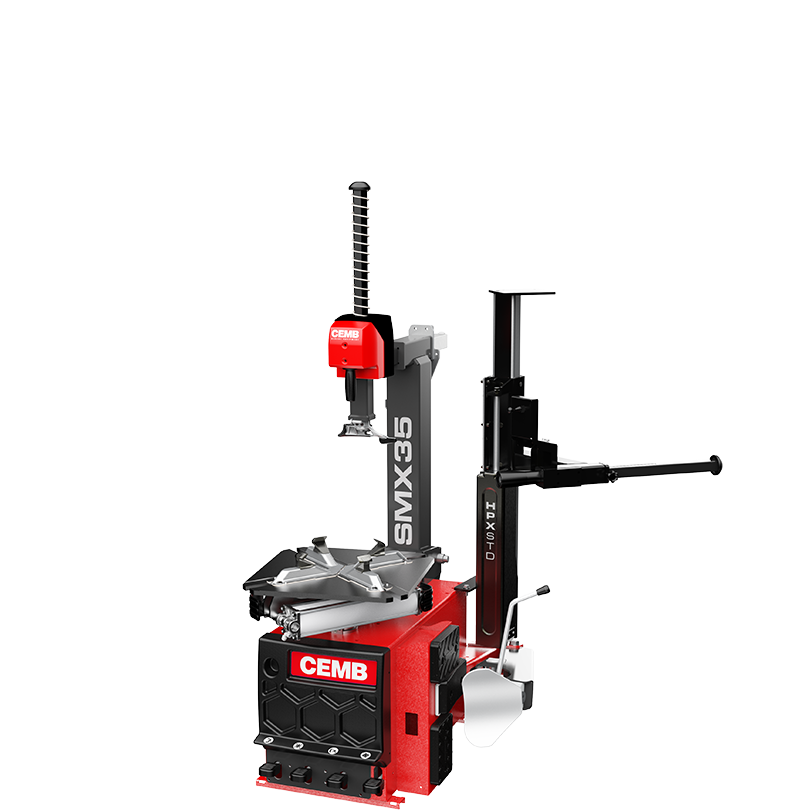

46MB00848 – HPX-STD

Professional compact side presser recommended to operate on particularly hard and large-sized Run-Flat and UHP Tyres.
Compact structure, designed with 1 air cylider Ø 80 mm to avoid bendings.
For SMX35 to be ordered with adaptor kit 46MB204588.

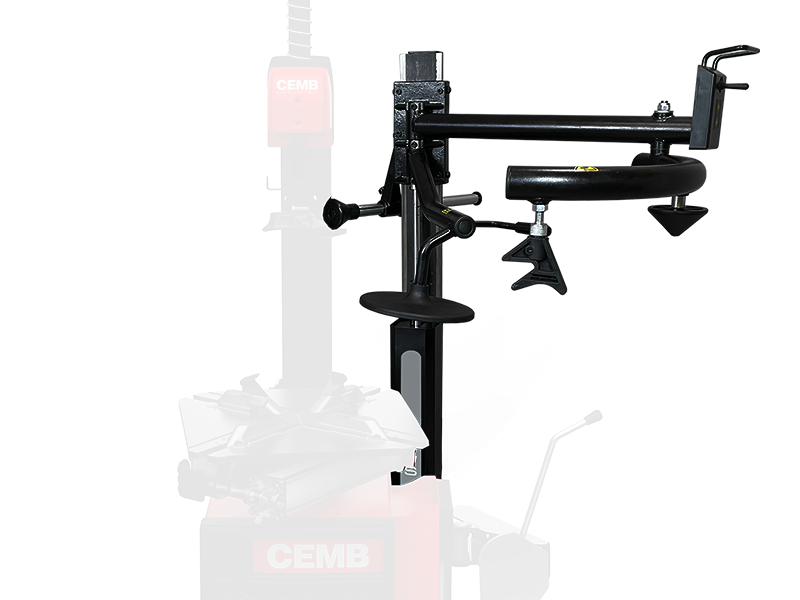

46MB203230 – HPX-WS

Professional side presser recommended to operate on particularly hard and large-sized Run-Flat and UHP Tyres.

46MB201633 – HPX-FA for HPX-ADV

Additional bead-pushing device HPX-FA which assists during the mounting and demounting of the upper bead. It
is recommended on tyres and rims with large diameters and sizes.

46MB00857 – HELPER ARM FOR HPX-STD

Additional bead-pushing device which assists during the mounting and demounting of the upper bead. It is recommended on tyres and rims with large diameters and sizes.
