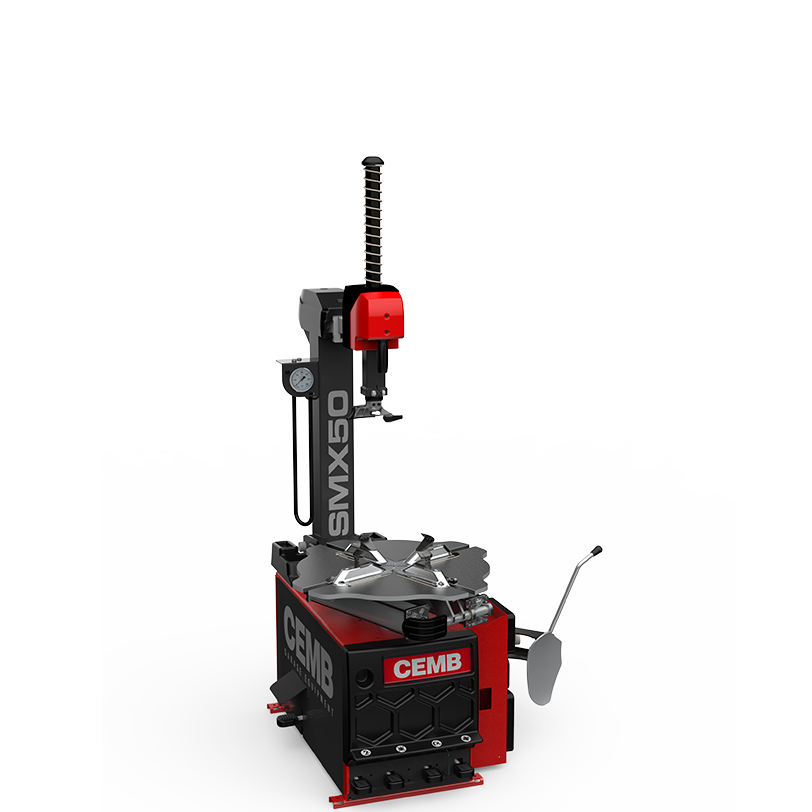

SMX50

Professional Tyre Changer
for High-Volume Workshops

Reliable, ergonomic and powerful for professional workshops

The SMX50 is a professional tyre changer for car and light commercial vehicle wheels up to 25”. Designed to guarantee strength, precision and user comfort, it delivers fast and safe operation even with intensive daily use.

Rear tilting post for maximum rigidity and prevention of rim deformation
Opposed-jaws clamping turntable with 80 mm cylinders for maximum clamping force and stability
Bead breaker arm with ergonomic control, suitable for wheels up to 15” width
Body with removable pedal unit for easier maintenance and aligned pedals for ergonomic use
Clamping capacity from 10” to 25” (max wheel diameter 1170 mm / 46”, width 360 mm/ 15”)
Available versions: TI version (integrated inflation device), A version (pneumatic tool arm positioning), MotoInverter version (variable speed motor control)

Solid, practical and versatile, the SMX50 is built to ensure durability, accuracy and efficiency in every professional tyre service operation.

Automatic Tyre Changer

25" inch Turntable

Features

Pedal Inflation System

The Pedal Inflation System allows the operator to control tire inflation using a foot pedal, enhancing precision and safety. It is also required when using an external TI device, as it keeps both hands free for safe operation.

TI (Tire Inflation) – Available only on TI Version

The TI system integrates a tire inflation device directly into the jaws, simplifying the bead seating process and ensuring uniform inflation. Available only on the TI version.

Pneumatic tool arm – Available only on A-Version

The A-Version offers a pneumatic tool arm that enhances precision and simplifies tool positioning during tire mounting and demounting.

Technical data

Clamping capacity	10” ÷ 25” (min ÷ max)
Internal clamping	12” - 25”
External clamping	10” - 22”
Max wheel diameter	1170 mm (46”)
Max wheel width	360 mm (14”)
Bead breaker force	15000N
1-Phase motor	0.75 kW 400V - 50/60 Hz (2 speed)
3-Phase motor	0,55 Kw 400V - 50/60Hz (1 speed) 1.5 kW (Inverter) 230V 50-60Hz
Turntable speed	8 -16 rpm (3ph - 2 speed)
Operating pressure	8 -16 rpm (3ph - 2 speed) 7 rpm (3ph - 1 speed) 0 -16 rpm (1ph - Inverter) 7 rpm (3ph - 1 speed)
Noise level	8 - 10 bar (116 - 145 psi)
Net weight	260 kg

Head protections – lever

Set composed by 3x front mounting head protections, 3x botton mounting head protections and lever

Optional equipment

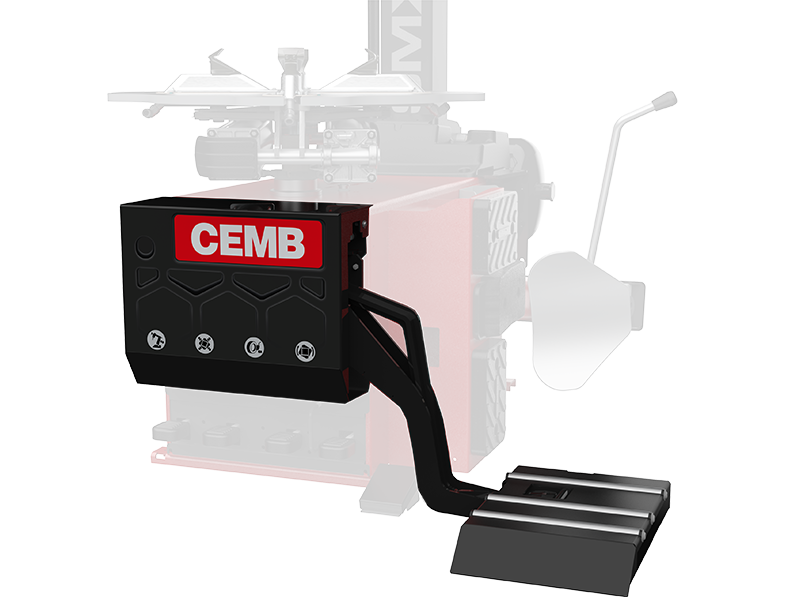

46MB400254 WHEEL LIFT

Front wheel lift with incorporated roller board

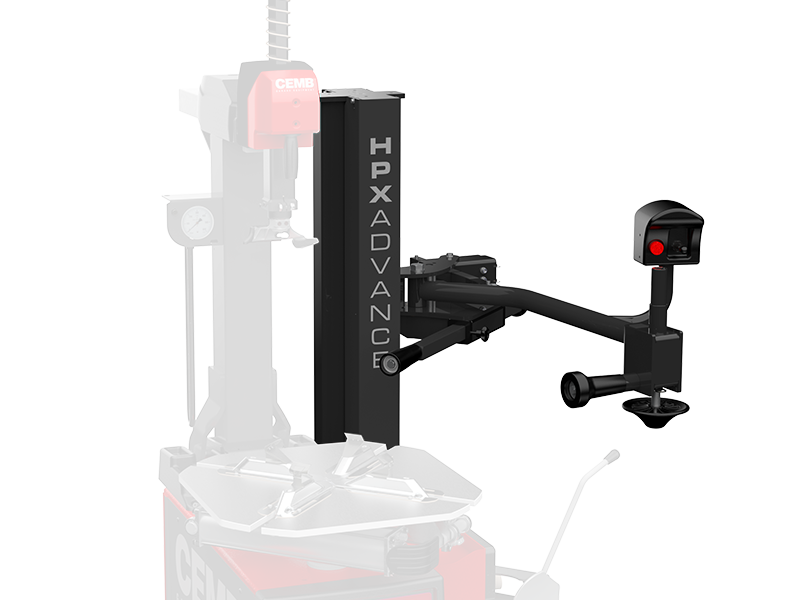

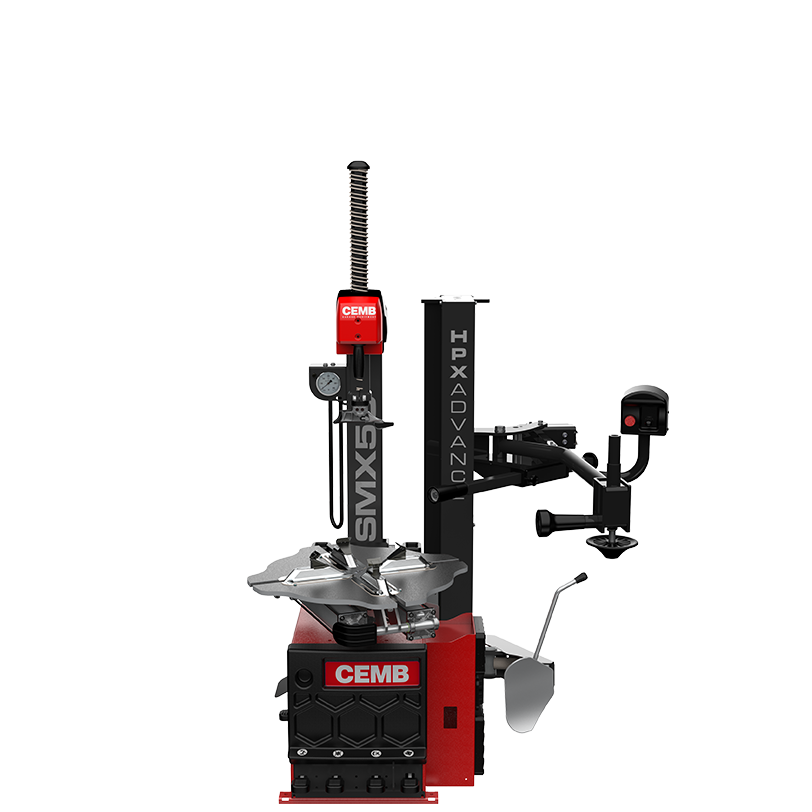

46MB00849 – HPX-ADV

Professional lateral presser ideal to operate on particularly hard and large-sized Run-Flat and UHP Tyres. Robust structure
with 2 air cylinders of 80 mm to avoid bendings. Equipped with rim pressing tool, standard bead pressing roller arm, bead pressing roller at 90° with pneumatic locking and possibility of operating under the tyre.
For SMX35 to be ordered with adaptor kit 46MB204588.

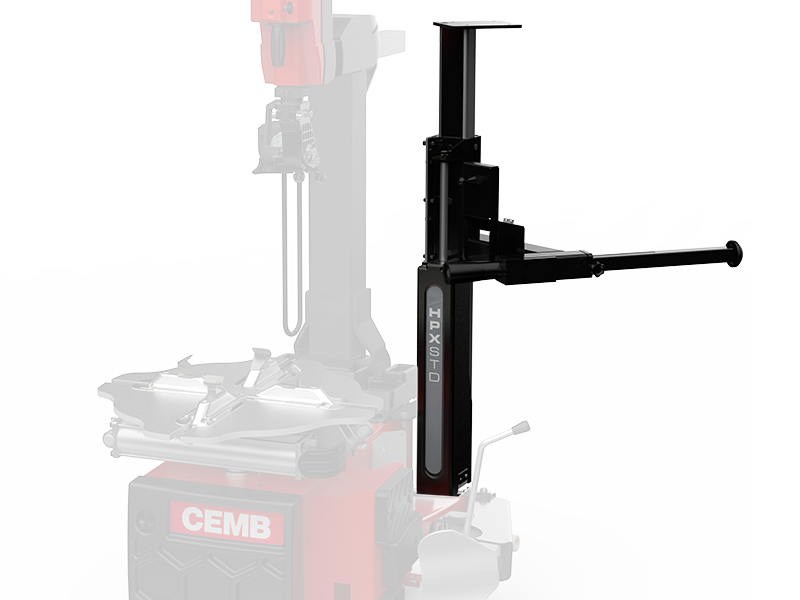

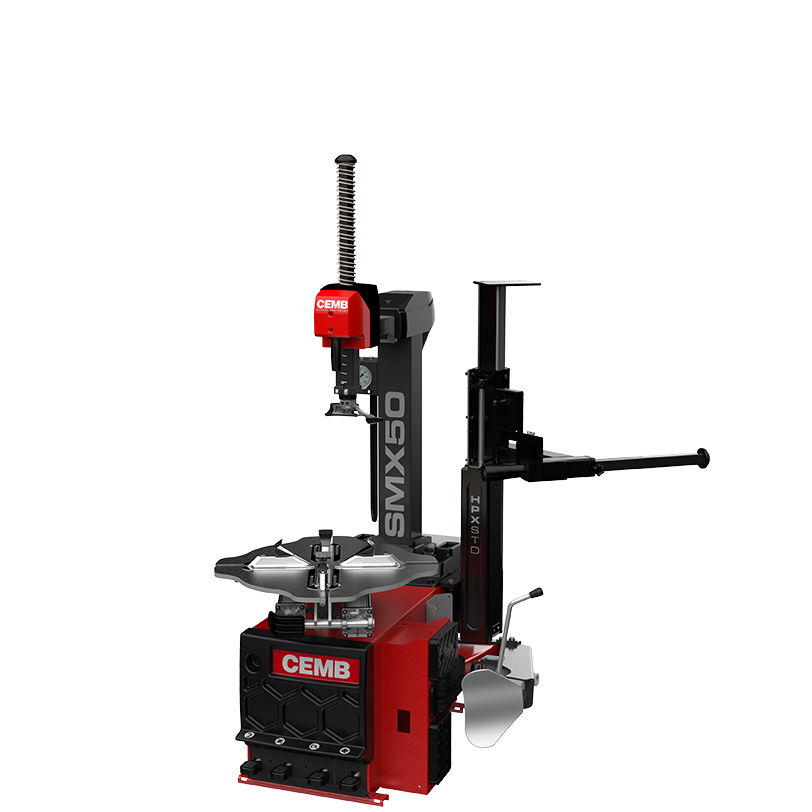

46MB00848 – HPX-STD

Professional compact side presser recommended to operate on particularly hard and large-sized Run-Flat and UHP Tyres.
Compact structure, designed with 1 air cylider Ø 80 mm to avoid bendings.
For SMX35 to be ordered with adaptor kit 46MB204588.

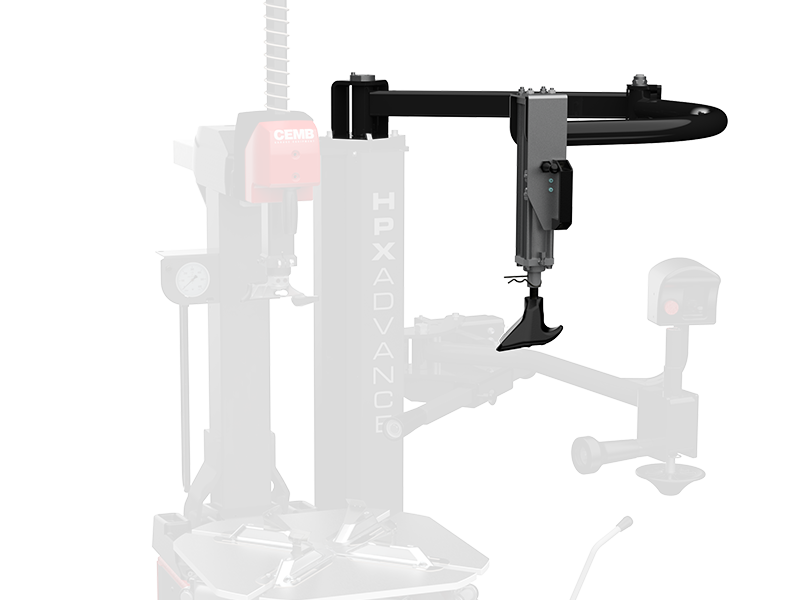

46MB201633 – HPX-FA for HPX-ADV

Additional bead-pushing device HPX-FA which assists during the mounting and demounting of the upper bead. It
is recommended on tyres and rims with large diameters and sizes.

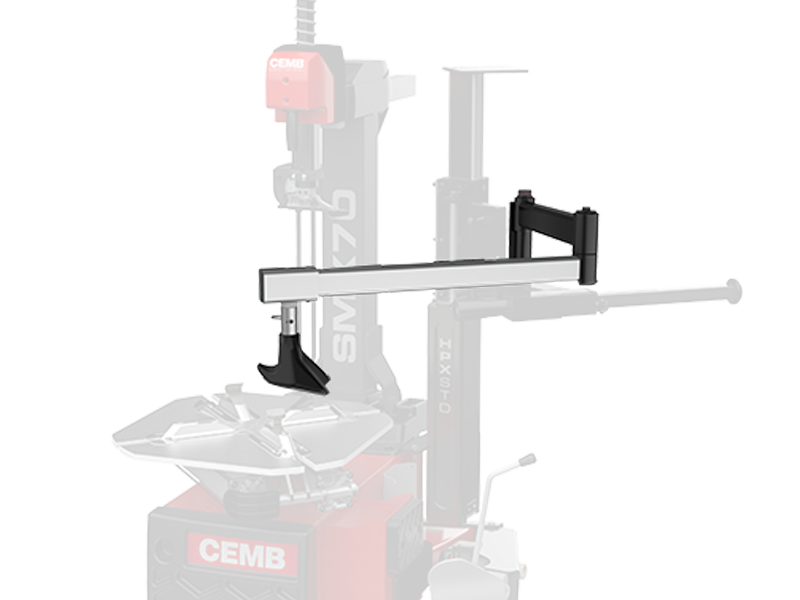

46MB00857 – HELPER ARM FOR HPX-STD

Additional bead-pushing device which assists during the mounting and demounting of the upper bead. It is recommended on tyres and rims with large diameters and sizes.
