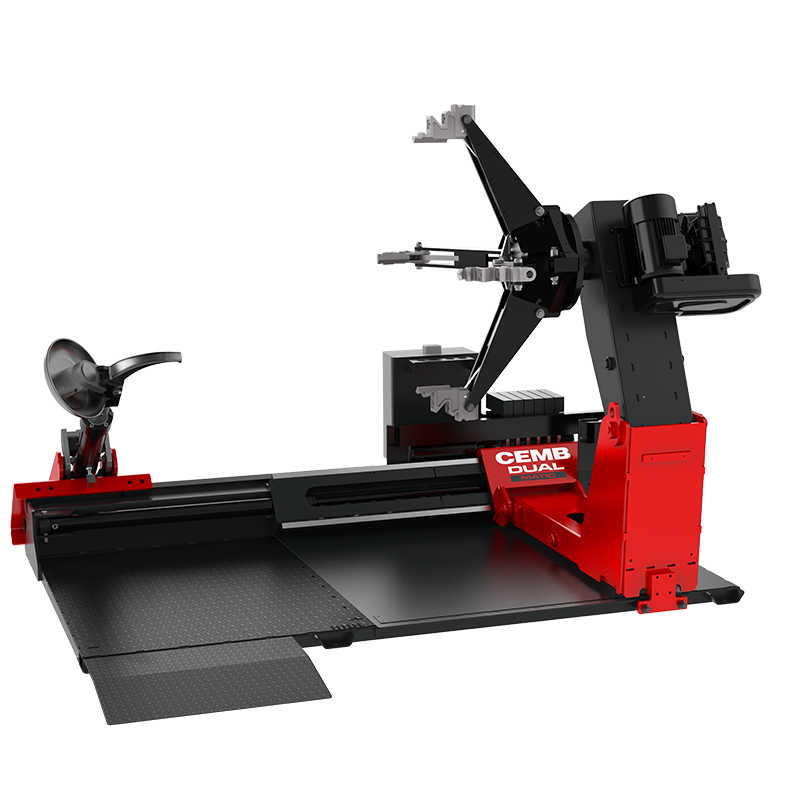

DUAL MATIC

Fully super-automatic
truck tyre changer
for wheels up to 60”

Engineered for extreme performance and total control on heavy-duty applications

Heavy-duty power, full automation and maximum efficiency for large wheels
DUAL MATIC is a super-automatic electro-hydraulic tyre changer designed for trucks, buses, agricultural and earth-moving vehicles. Built to handle wheels up to 60”, it combines strength, precision and advanced automation to simplify even the most demanding operations.

Thanks to its fully automatic double carriage system and independent movements of the tool arm and spindle, DUAL MATIC ensures fast positioning and smooth operation on any type of wheel, significantly reducing working time and operator effort.

Engineered as the ultimate expression of the heavy-duty concept, it guarantees maximum robustness, reliability and performance even under intensive workloads and extreme operating conditions.

Technical data

Clamping capacity11’’- 46’’ (60” with extensions)
Central hole clamping70 mm (2,75”)
Max wheel diameter2550 mm (100”)
Max wheel width1500 mm (59”)
Max wheel weight2300 kg
Cylinder lifting capacity30.000 N
Hydraulic unit motor2,2 - 3 kW
Chuck 3-phase motor4,5 - 9 rpm
Power Supply400V/3/50Hz (standard)
Net Weight1450 kg
42MB500232 PAR

Pliers for alloy rims

42MB50174 BEAD LIFTING LEVER

Optional equipment

46MB501031 RING PROTECTION 281mm

Ring protection rim 281 mm for 22,5 inch alloy rim

42MB500232 PAR

Pliers for alloy rims

46MB500516 EXTENSIONS

Set of 4 extensions up to 60” for SMT56/SA/MATIC, SMT60/ SMT60R or DUAL MATIC

42MB500518 BEAD PRESSING DEVICE

Pneumatic bead pressing device for agricultural and earthmoving wheels
