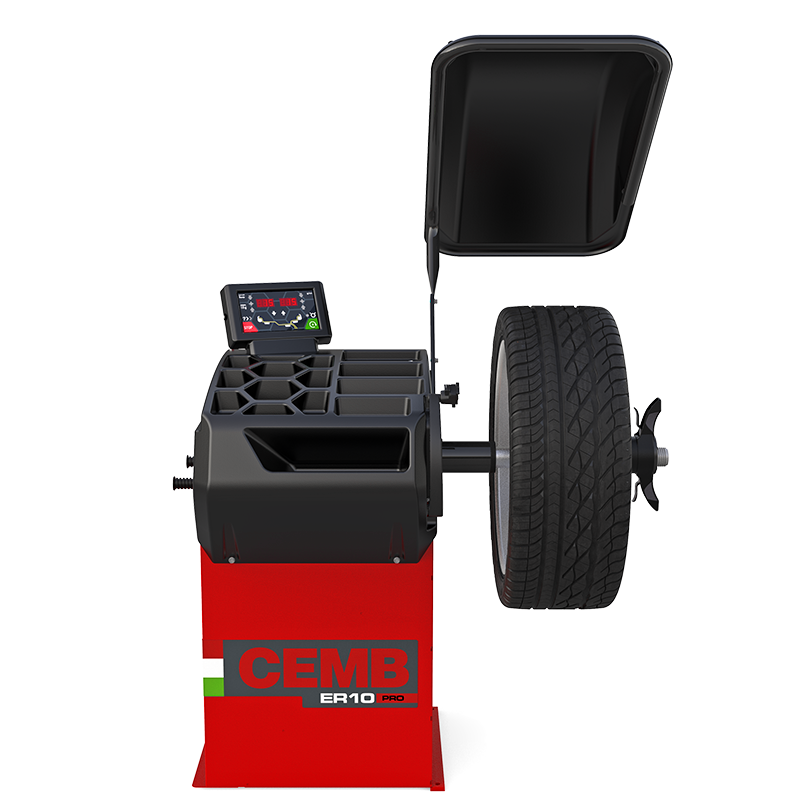

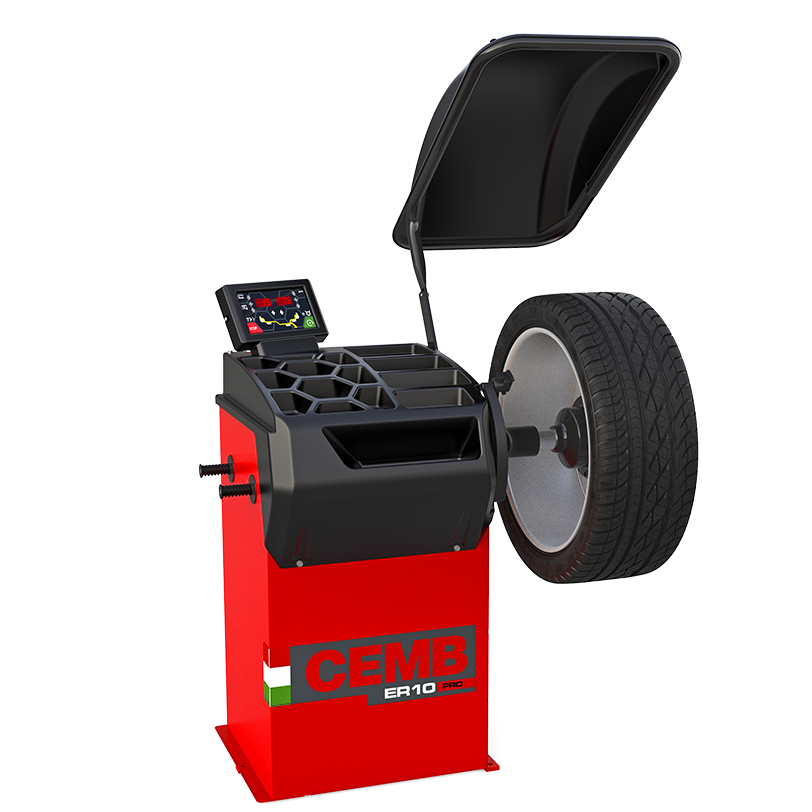

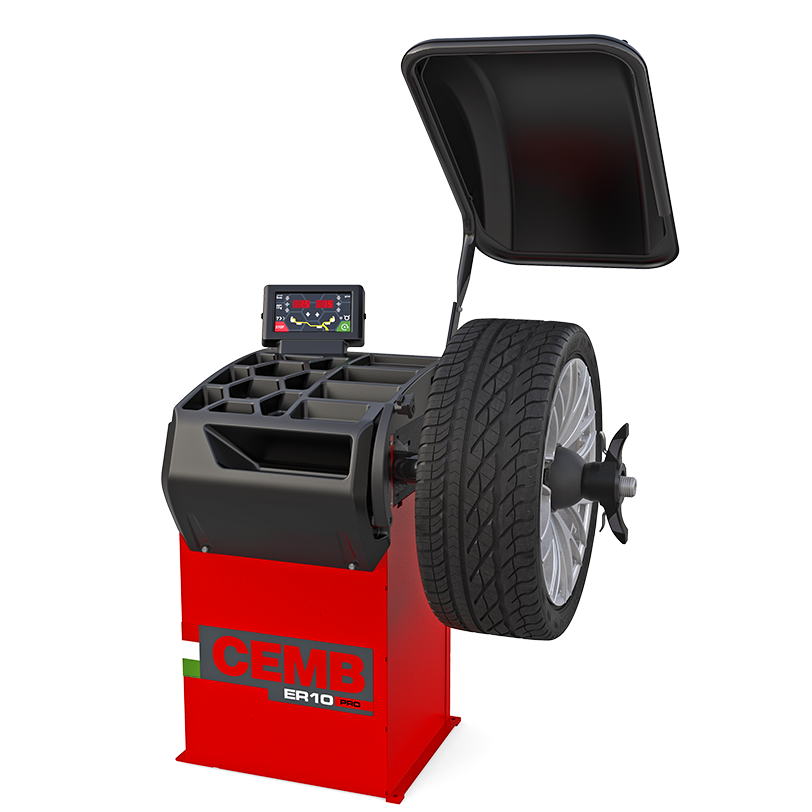

ER10 PRO is a compact 3D wheel balancing machine engineered for tyre shops and automotive workshops that require professional balancing performance in a space-saving design.
Designed to deliver fast and accurate wheel balancing, ER10 PRO combines advanced measuring technology with intuitive operation and an ergonomic working layout. Its compact dimensions make it ideal for workshops where space is limited, without compromising balancing quality or productivity.
Reliable, efficient and easy to use, ER10 PRO is the perfect solution for professionals looking for a modern wheel balancer capable of handling everyday tyre service operations with speed and precision.
Virtual Sonar is a software solution that enables accurate rim width detection on steel wheels without manual input and without a physical sonar device.
Using a vast database of hundreds of thousands of rim profiles, the system precisely calculates the second correction plane, covering up to 95% of all wheels in circulation.
AutoAdaptive Mode is the innovative tolerance recalculation system that, for each wheel, acquires its weight and dimensions and recalculates the tolerance value to eliminate any vibrations felt on the steering wheel.
The automatic gauge measures wheel distance and diameter up to 28″ in a single motion—no manual input required.
The electromagnetic brake automatically locks the wheel in the correction position—so you can work faster, more accurately, and with less effort.
The Automatic Approach system positions the wheel near the correction point.
It has been introduced to simplify and speed up the balancing process, even on mid- and entry-level wheel balancers, ensuring improved overall efficiency.
| Single phase power supply | 230V/1ph/50 hz 115V/1ph/60 Hz |
| Max. absorbed power | 0,65 kW |
| Balancing speed | 100 rpm |
| Measuring cycle for 15 kg (33 lb) wheel | 4.7 s |
| Measurement uncertainty | 0,5 g |
| Avarage noise | < 70 dB (A) |
| Rim width setting range | 1.5” ÷ 20” / 40 ÷ 510 mm |
| Rim diameter setting range | 10” ÷ 30” / 265 ÷ 765 mm |
| Max. wheel weight | < 75 kg |
| Machine weight | 110 kg |
Quick locknut GL40, with sleeve and rubber protection ring
Set composed by 3 cones Ø 45÷110 mm, pincer-hammer and 60 g. counterweight
Professional mechanical wheel lift. ZERO weight effect.
Adapter for manual locking balancers for all 3, 4, 5 and 6 hole rims.
Universal adapter for all wheels with 3, 4, 5, 6 holes (95-210 mm pitch circle Ø) complete with high precision back centering double cone for wheels with/without central holes (Renault, Peugeot and Citroën).
Kit for Ford pick-up and other 4-wheel drive vehicles (Ø 97-180mm)
Double-sided cone for central hole Ø 100-194 mm
