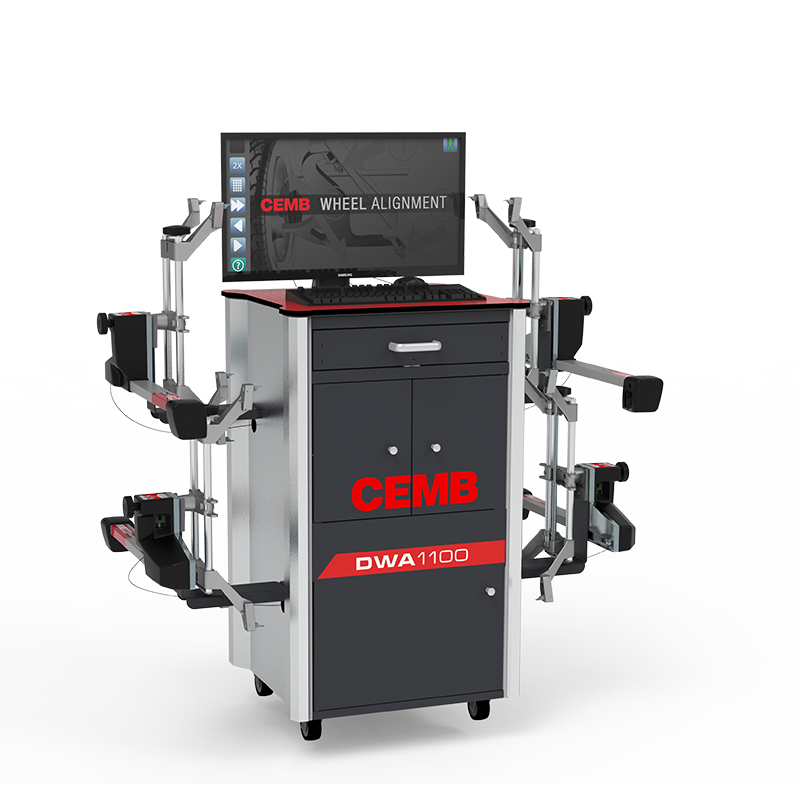

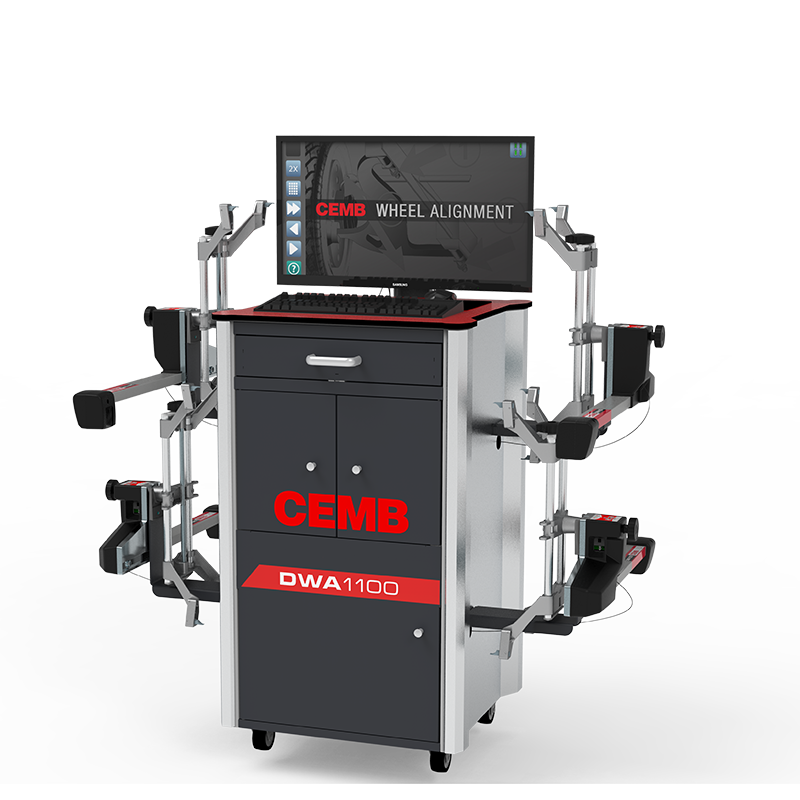

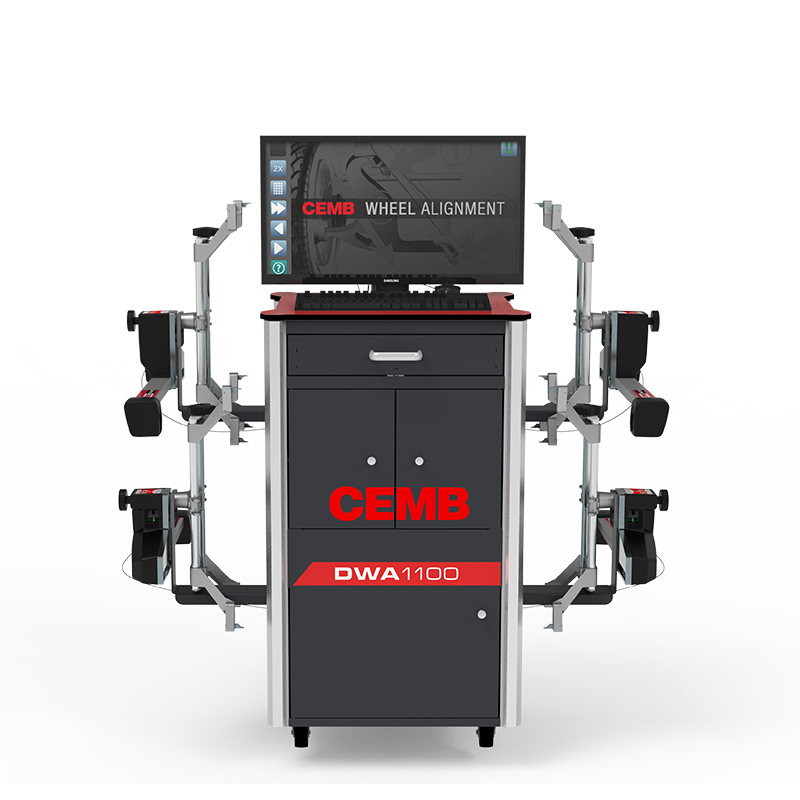

DWA1100

8-CCD Wheel Alignment
for Cars and
Light Trucks

Lightweight, wireless and precise alignment for every vehicle type

The DWA1100 is an 8-CCD wheel alignment system designed for cars, SUVs and light commercial vehicles. Combining high accuracy, fast measurement and easy handling, it delivers professional alignment results even in outdoor and high-light environments. Its lightweight sensors and advanced wireless communication make it a reliable, efficient and easy-to-use system for modern workshops.

  • Featherweight sensors of only 2.6 kg, easy to handle and durable
  • Innovative BT² wireless communication for immediate connection and stable data transfer
  • Lithium batteries offering up to 24 hours of work, with one-year guarantee
  • Direct recharge of sensors without disassembly for maximum convenience
  • Silicon accelerometer for shock resistance and reliability over time
  • Sunlight filter for perfect measurement even on wheelbases over 12 m outdoors
  • Fast Caster Swing and two-axle adjustment on one screen for efficient operation
  • Audit function for the identification of driving problems

Compact, ergonomic and simple to operate, the DWA1100 combines precision, speed and flexibility, making it the ideal choice for car and light truck alignment in any professional workshop.

Technical data

Power supply230 VAC single-phase 50/60 Hz | 115 VAC single-phase

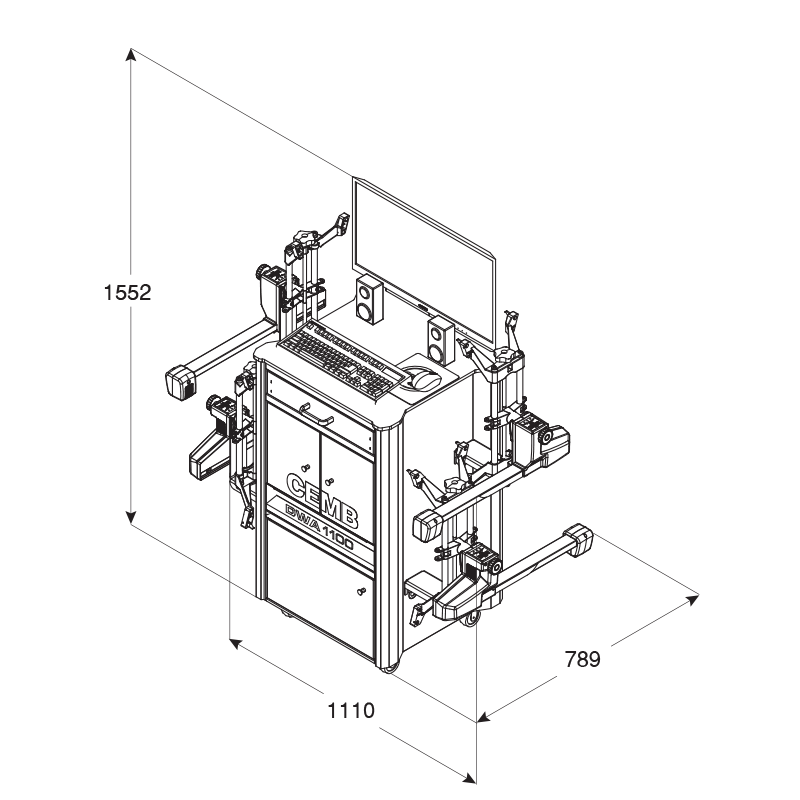

Package dimensions113x113x113
Net weight155 Kg (342 pound)
46DWA7510 GRIPS

Metal 80 mm grips for 4-WD, SUV, light trucks and rims with hubcap

46DWA7503 GRIPS

Metal 48 mm grips with reference surface to optimize runout

Optional equipment

EWACEMB08 PREMIUM TURNTABLES

Kit of 2 PREMIUM manual locking rotating plates.

Capacity 1000 kg per plate, diameter 35 cm, with rubber supports

8003000057 WIFI ANTENNA

WIFI USB ADAPTOR remote access for automatic updates

800300083 ROUTER

ROUTER (necessary to use the Wheel Alignment APP)

46DW75330 GRIPS FOR STEEL RIMS

16 grips for clamping on iron rims from the inside

46DW037297 TRUCK AND BUS UPGRADE KIT

2 Truck and bus turnplates, 2 measuring heads for truck – 16 L=120mm truck grips – software and database for TRUCK

74SC00170 TWO MECHANICAL TURNTABLES FOR CARS

Kit of 2 mechanical turntables for cars.

Dimensions: 38X38 cm
Height of turntable surface from the table top: 5cm
Handle overall dimensions: 11cm
Turntable diameter: 31cm
Capacity: 1000kg

46DW75803 CLAMP EXTENSIONS

16 extensions to increase the working diameter up to 30” for SUV

46DW065412 MONKEYS

Set of four innovative PATENT PENDING quick wheel grabbers for wheels 22”-35”.

46DW063538 CLAMP SUPPORT ADAPTORS

Set of 4 additional holders for Monkeys to be mounted on standard clamp supports of DWA1100 cabinet

46DW068280 3-POINT CLAMPS

Set of four 3-point self-centering wheel clamps for rims 12”-23”. Complete with 12 plastic grips.

CCD WHEEL ALIGNERS.

46DW046243 DROP-DOWN EXTENSION

4 Adapters for use with two-post lift or truck wheels (up to 50”). Two fulcrum drop-down positions: 125mm or 250mm

46DW90924 CALIBRATION KIT

Calibration kit complete with spirit level to calibrate measuring heads

86SB85932 BACKUP CABLES

Set of 4 feeding cables for recharging batteries when measuring heads are mounted on vehicle (13 m length)

46DW037241 ADAS CCD KIT

ADAS positioning system, including set of two universal adaptors for ADAS support panel calibration bar and software activation USB key.
