Vibration Equipment Division C310

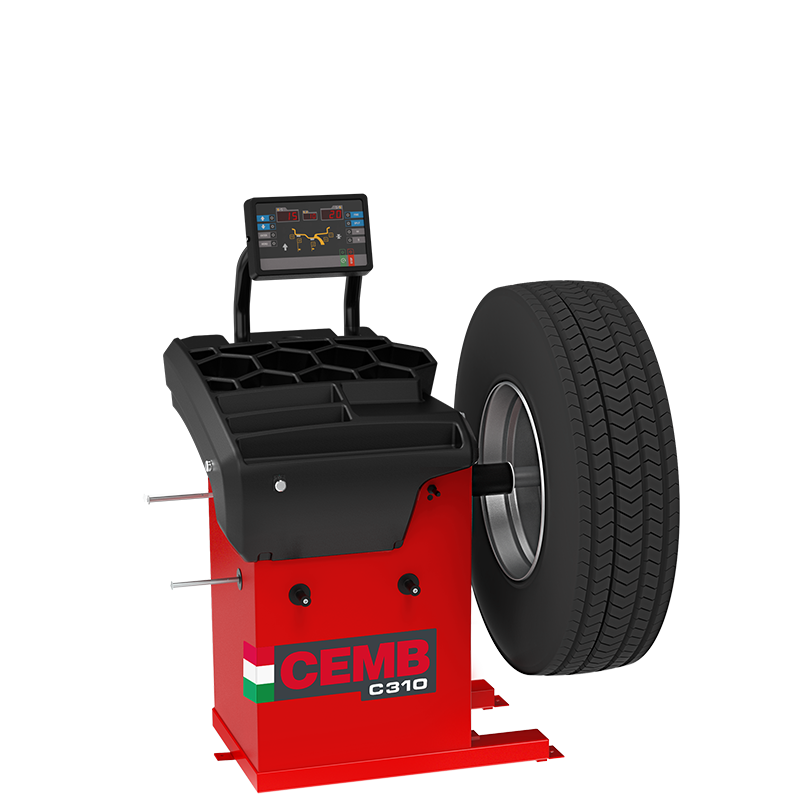

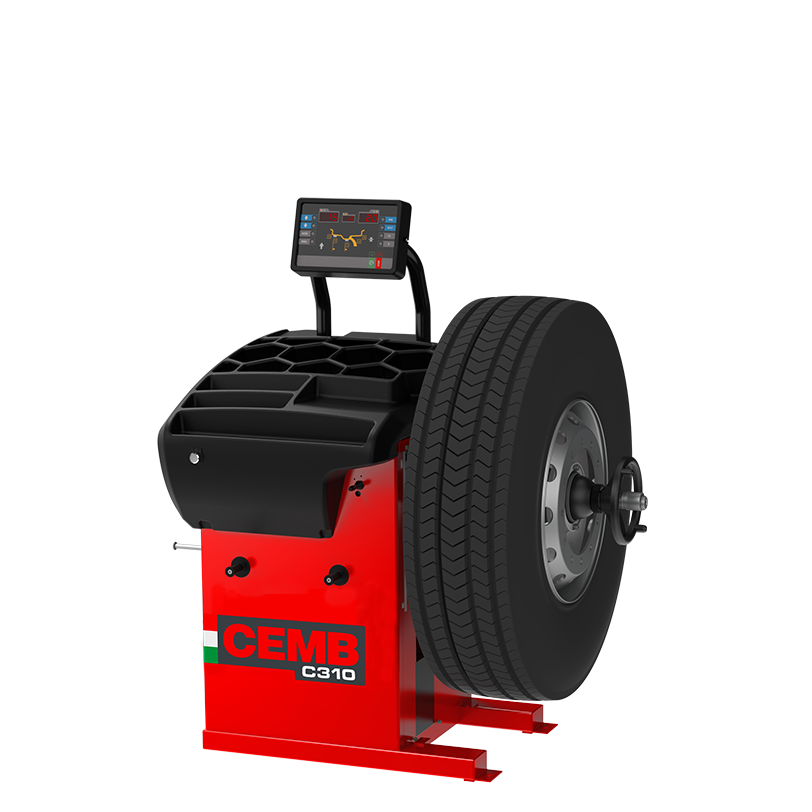

Digital truck balancer
with user-friendly operation
Digital balancer for truck wheels up to 250 kg
The C310 is a digital balancer with automatic spin designed for truck, bus and car wheels up to 250 kg. With its Press&Start system, operators can launch the measurement spin using two simple side buttons, ensuring maximum safety and time savings. The automatic gauge detects rim distance and diameter (up to 26”), while width is set manually. Thanks to its functional weight tray and intuitive display graphics, the C310 makes switching from truck to car wheels quick and simple.
Key features:
- Automatic gauge for rims up to 32”
- Line laser for exact 6 o’clock counterweight positioning
- Lifting spindle for safe and effortless wheel centring
- Press&Start system with dual side buttons for operator safety
- Low rotation speed
- Functional weight tray for cones, clip weights and accessories
- Wide program selection for efficient balancing of all wheel types
Features
Lifting Spindle
The lifting spindle is an innovative CEMB system designed to raise and lower the spindle shaft, enabling safe wheel loading, precise centering, and highly accurate balancing, even for heavy truck and bus wheels.
Laser Line
A precise red laser indicator assists in positioning adhesive counterweights at the 6 o’clock position, ensuring highly accurate and efficient wheel balancing.
Technical data
| Single phase power supply | 230 V/1ph/50 Hz 115V/1ph/60 Hz |
| Max. absorbed power | 0,65 kW |
| Balancing speed | 130 rpm (for car) / 80 rpm (for truck) |
| Measuring cycle for car/truck wheel | 8 ÷ 20 s |
| Measurement uncertainty | ± 0.5 g |
| Resolution | 1 g for car / 10 g for truck |
| Average noise | < 70 dB (A) |
| Rim width setting range | 1.5” ÷ 20” / 40 ÷ 510 mm |
| Rim diameter setting range | 10” ÷ 30” / 265 ÷ 765 mm |
| Min./Max. compressed air pressure | 8 ÷ 12 kg/cm2 / ~ 0.8 ÷ 1.2 MPa ~ 8 ÷ 12 bar / ~ 120 ÷ 165 psi |
| Max. wheel weight | 250 kg |
| Max. wheel diameter | 1380 mm |
| Machine weight | 190 kg |

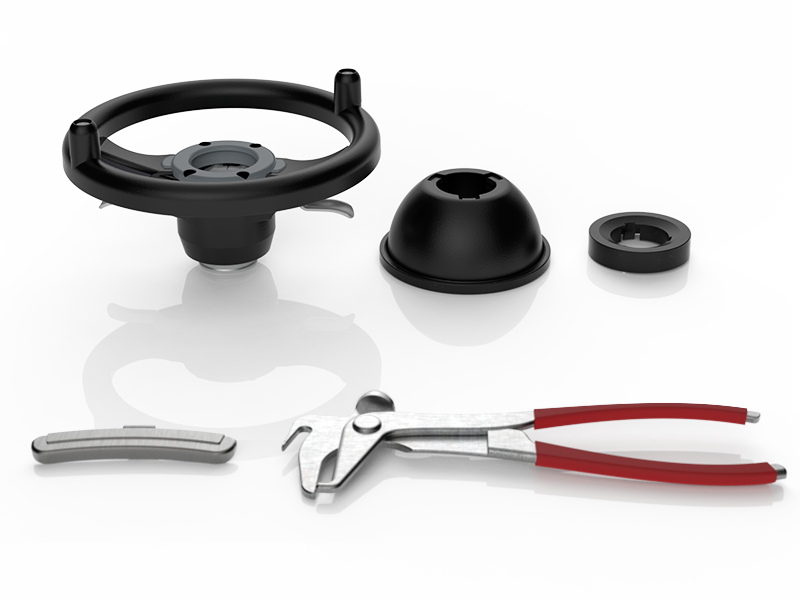

Quick nut, spacer ring, pincer-hammer, weight and gauge
Set composed by quick nut with spacer ring, pincer-hammer, 300 g. counterweight and WDC gauge
Optional equipment

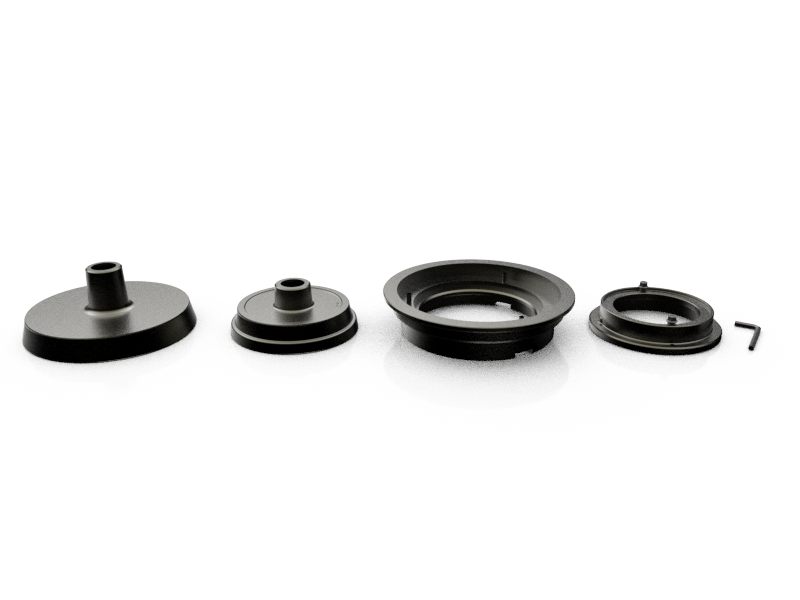

41FF054929 – IV/V CONES-GG-G40 KIT
Set composed by IV and V cones, G40 disc and GG ring

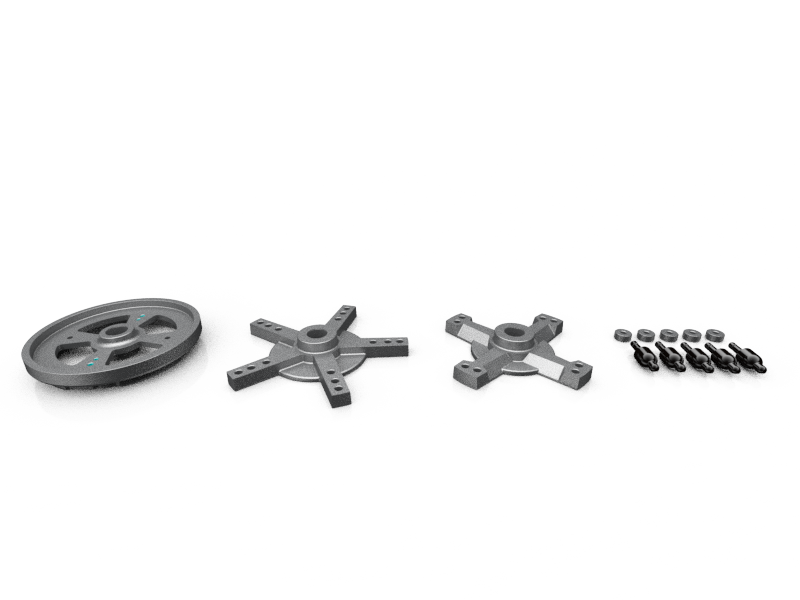

41FF67879 – SR215
Supplied with centring adaptor, 5 and 4 armed spiders, stud bolts and screws.

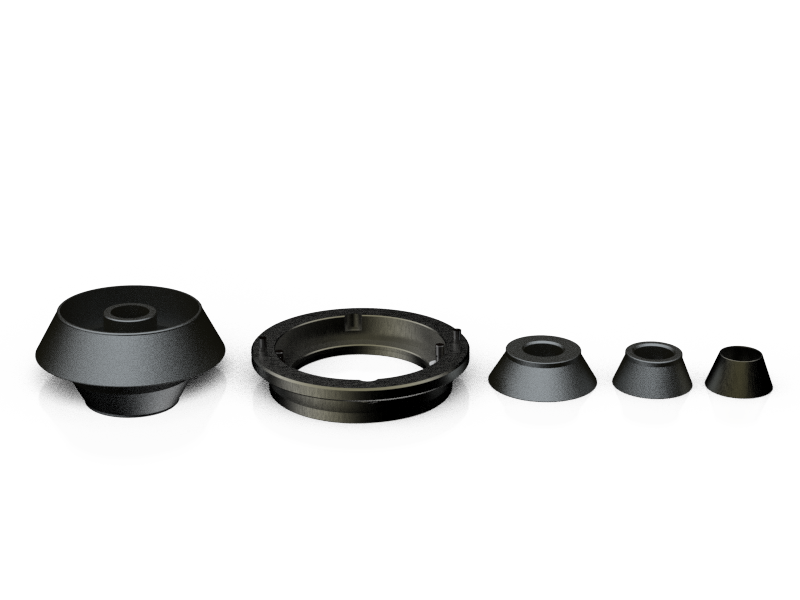

41FF054930 – CAR ADAPTOR KIT
Kit composed by 4 cones and G40 disc
